The Bumper LED Pod Light Kit compatible with Jeep JK Wrangler 2007-2018 from Diode Dynamics allows you to mount two SS5 LED pods on the factory bumper.

Features

Bolt-on fitment compatible with Jeep JK Wrangler 2007-2018
Ultra-high intensity with custom-engineered TIR optics
Selectable backlight color with eight color options
Torture-tested heavy-duty construction
Control through factory aux switch bank using the included harness
Assembled in USA

Overview

Perfect Fitment. The Bumper LED Pod Light Kit compatible with Jeep JK Wrangler 2007-2018 from Diode Dynamics allows you to mount two SS5 LED pods on the factory bumper. These application-specific brackets were CAD-designed to bolt into place using factory mounting points. No cutting or drilling required!

Designed for Performance. Featuring the highest output intensity of any 5-inch LED pod on the market these lamps have been designed for maximum functionality with patented technology and custom-engineered TIR optics all in a durable package.

Selectable Backlight. The Stage Series 5inch LED Pods included in the White kit feature a selectable backlight with eight different color options perfect for an extra styling accent or for more visibility when you(TM) re not using the main beam. Selecting your backlight color is easy - simply alternate the power on and off. There(TM) s no complicated programming with a controller! The SS5's backlight fully illuminates the TIR optic providing unique accent lighting that you won't find on other LED pods. NOTE: Due to the yellow lens the Yellow kit is only available with an Amber backlight color.

Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs
Pin-fin heatsink design
Integrated Deutsch-style connector
Durable powdercoated aluminum construction

Information:

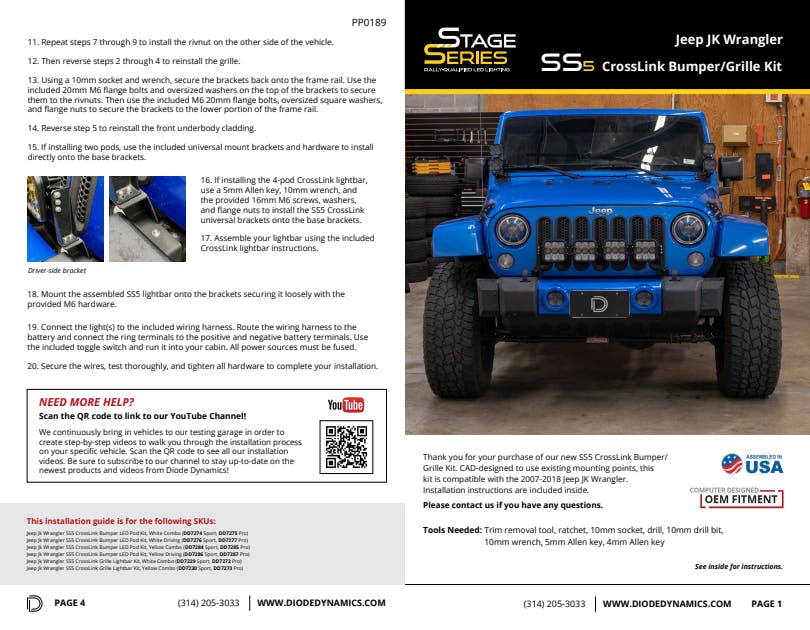

Included in the box: Two (2) Application-specific heavy-duty steel brackets for installation on 2007-2018 Jeep Wrangler. Two (2) Stage Series 5inch LED Pods. One (1) OEM auxiliary switch dual-output harness. One (1) heavy-duty dual-output harness. Installation Guide.

Application Summary:

Year	Make/Model
2018	Jeep Wrangler JK

Attributes
Add-On	N/A, N/A
Base Color	Black, Black
Base Material	Steel, Steel
Bolt Grade	High
Bolt Thread Type	Medium, Medium
California Proposition 65	No
Color Temp	6000K, 6000K
Compliance Rating	SAE J581 Driving/Auxiliary High Beam Pattern, SAE J581 Driving/Auxiliary High Beam Pattern
Country of Origin (Primary)	US
Drilling Required	No, No
GTIN	00195995126498
Hazardous Material Code	N
Input Power (watts)	90, 90
Intensity (lux)	75,700 cd, 75,700 cd
Intrusion Rating	IP69K Waterproof High Pressure
Life Cycle Status Code	Available to Order
Measured Output (lumens)	9,600 lm, 9,600 lm
Mounting Hardware Included	Yes, Yes
Operating Temperature	-40C to 85C (-40F to 185F), -40C to 85C (-40F to 185F)
Operating Voltage	9-16V
SDR Required Flag	N
Sheen Level	Matte, Flat
Universal Or Specific Fit	Specific, Specific
Warranty Time	8
