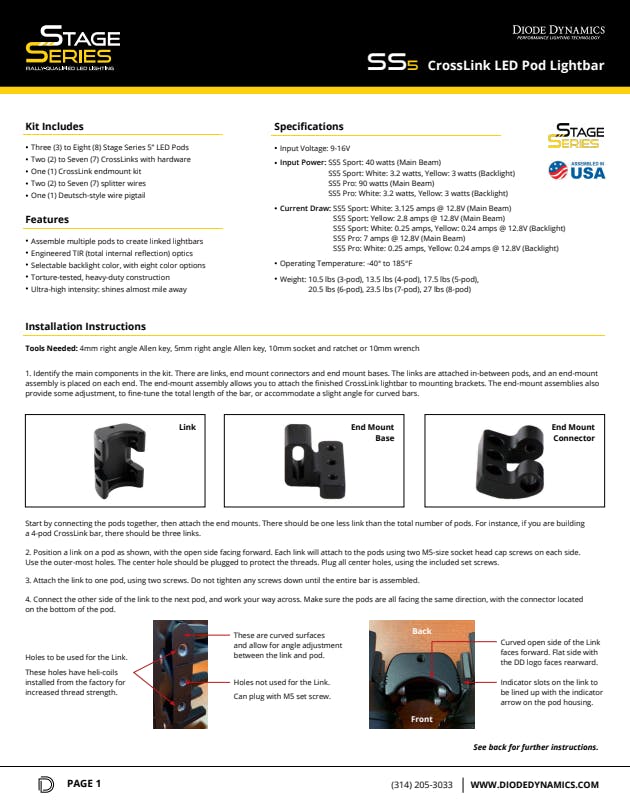

Using our patent-pending CrossLink technology this kit links four SS5 LED pods together into a single lightbar. Featuring the highest output intensity of any 5-inch LED pod on the market.
Advanced TIR optics provide high efficiency and focus. High-intensity automotive-type LEDs. Pin-fin heatsink design. Integrated Deutsch-style connector. Durable powdercoated aluminum construction. Engineered and Assembled in USA.
Advanced TIR optics provide high efficiency and focus. High-intensity automotive-type LEDs. Pin-fin heatsink design. Integrated Deutsch-style connector. Durable powdercoated aluminum construction. Engineered and Assembled in USA.
- By directly manufacturing many of our products in St. Louis, Missouri, we are able to carefully control quality, while bringing unique items to market faster than the competition.
Information:
Included in the box: Four (4) Stage Series 5inch LED Pods. Three (3) CrossLinks with hardware. One (1) CrossLink endmount kit. Three (3) splitter wires. One (1) Deutsch-style wire pigtail.Attributes | |
Add-On | N/A |
Base Color | Black |
Base Material | Steel |
Bolt Grade | High |
Bolt Thread Type | Medium |
California Proposition 65 | No |
Color Temp | 6000K |
Compliance Rating | SAE J581 Driving/Auxiliary High Beam Pattern |
Country of Origin (Primary) | US |
Drilling Required | No |
GTIN | 00195995126146 |
Hazardous Material Code | N |
Input Power (watts) | 90 |
Intensity (lux) | 75 700 cd |
Intrusion Rating | IP69K Waterproof High Pressure |
Life Cycle Status Code | Available to Order |
Measured Output (lumens) | 9,700 lm |
Mounting Hardware Included | Yes |
Operating Temperature | -40C to 85C (-40F to 185F) |
Operating Voltage | 9-16V |
SDR Required Flag | N |
Sheen Level | Matte |
Universal Or Specific Fit | Specific |
Warranty Time | 8 |
Diode Dynamics DD7240 Pod light featuring advanced TIR optics for high efficiency and focus.
Product Information
- Brand: Diode Dynamics
- Product Number: DD7240
