The SAE/DOT LED Lightbar Kit compatible with the Toyota 4Runner 2014-2023 from Diode Dynamics allows you to mount a pair of SS6 Stage Series 6in Light Bars in the upper grille opening.

Overview

Perfect Fitment. The SAE/DOT LED Lightbar Kit compatible with the Toyota 4Runner 2014-2023 from Diode Dynamics allows you to mount a pair of SS6 Stage Series 6in Light Bars in the upper grille opening. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required!

Street Legal Output. This kit isn't just for off road! It is legal for on-road use as driving lights (Please check your local laws and regulations for aiming installation and applicability). With the included plug-and-play wiring harness you can control the kit through your toggle switch.

The Wide provides an extremely wide field of view without wasting any light in the sky above and provides a 100Wx8H degree spread of light. It was designed to supplement your fog lights and is perfect for driving in inclement weather.

Designed For Performance. Using optical simulation modeling Diode Dynamics Stage Series light bars have been designed for maximum functionality with compact size custom-engineered TIR optics and a useful beam pattern all in a highly durable package. Our light bars shine light in a highly functional and useful beam pattern much more focused than older LEDs on the market.

NOTE: Compatible with all Toyota 4Runner 2014-2019 trims but only compatible with 2020-2021 TRD Pro trim package.

Advanced TIR optics provide high efficiency and focus
High-intensity automotive-type LEDs with pure white color
Slim 42mm housing for low-profile fitment
Durable matte powdercoated extrusion

Information:

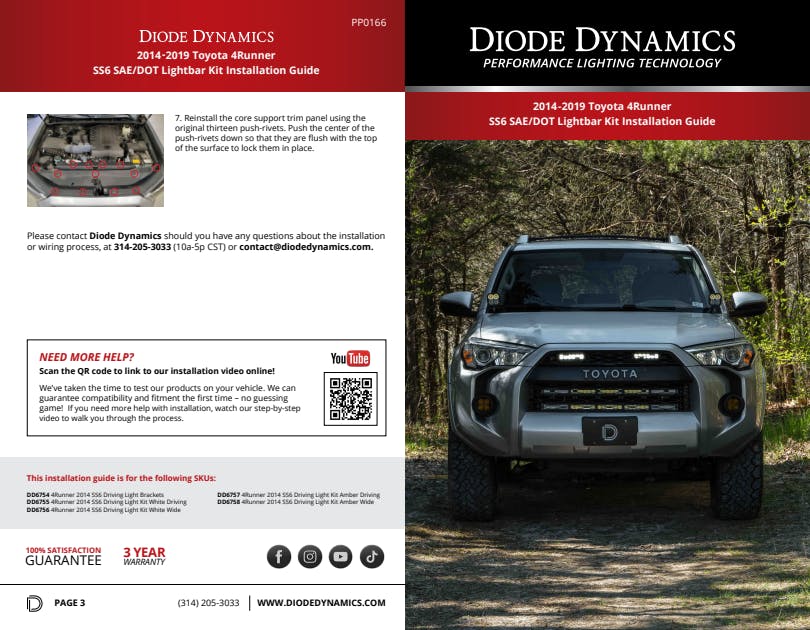

Included in the box: Two (2) application-specific SS6 brackets for installation on the 2014-2021 Toyota 4Runner. Two (2) SS6 Stage Series lightbars. One (1) heavy-duty dual output 2-pin offroad wiring harness. One (1) aux switch adapter wire. Mounting hardware and guide.

Application Summary:

Year	Make/Model
2014-2024	Toyota 4Runner

Attributes
Add-On	N/A, N/A
Bracket Color	Black, Black
Bracket Material	Steel, Steel
California Proposition 65	No
Color Temp	6000K, 6000K
Country of Origin (Primary)	CN
DOT Approved	Yes
Department of Transportation Approved	Yes
GTIN	00691026129082
Grade Type	Specialty, Specialty
Hazardous Material Code	N
Housing Material	Aluminum, Aluminum
Input Power (watts)	26.6, 26.6
Intensity (lux)	13 000 cd, 13 000 cd
Intrusion Rating	IP68 Waterproof, IP68 Waterproof
Lens Material	Polycarbonate, Polycarbonate
Life Cycle Status Code	Available to Order
Light Housing Color	Black, Black
Light Shape	Four Sided, Four Sided
Measured Output (lumens)	1 400 lm, 1 400 lm
Operating Temperature	-40C to 85C (-40F to 185F), -40C to 85C (-40F to 185F)
Operating Voltage	9-16V, 9-16V
SDR Required Flag	N
Street Legal	Yes, Yes
Switch Included	No, No
Terminal Type	Pin, Pin
Universal Or Specific Fit	Universal, Universal
Voltage	9-24V, 9-24V
Warranty Time	8
